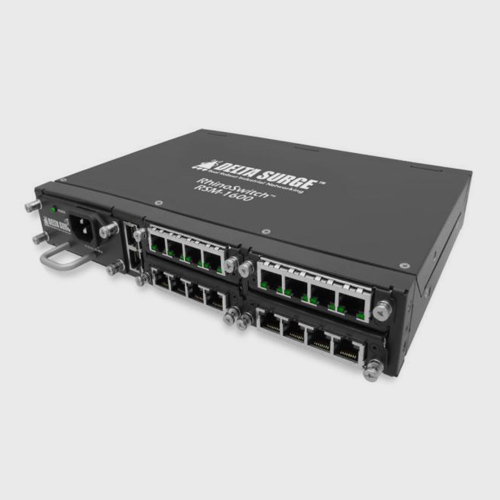

RhinoSwitch® RSM-1600 Managed Switches

RhinoSwitch® RSM-1600 Managed Switches

The RhinoSwitch® RSM-1600 Modular Managed Switches are industrially hardened and offer up to sixteen Fast Ethernet RJ45 ports. Based on the power supply selected, these ports can be either PoE or PoE+. They can alternately be configured with 12 Fast Ethernet and 2 Gigabit fiber or copper ports. The RhinoSwitch® RSM-1600 Managed Switches are highly suitable for harsh or extreme environments.

Datasheet (PDF) Contact now
Category:

Related products

  • Up to 16 100Mb copper or fiber (with up to 8 PoE+ ports) OR up to 2 Gigabit ports and 12 100Mb copper or fiber ports (with up to 8 PoE+ ports)
  • Robust, user-friendly Management Software
  • Extended operating temperatures ranging from -40° to +85° C
  • Multi-level passwords, SNMPv3, IEEE 802.1X, RADIUS, TACACS+, HTTPS, and SSL/SSH for network security
  • High and low AC/DC power options

The features of the Management Software in RhinoSwitch® RSM-1600 Managed Switches are:

  • Robust GUI and CLI-based Management Software
  • RSTP, RSTP-2004 & MSTP for rapid recovery
  • VLAN (802.1q) with Double Tagging and GVRP
  • IGMP Snooping and GMRP multicast filtering
  • Quality of Service (802.1p) and TOS/DiffServ
  • LLDP for automated topology discovery
  • LACP 802.3ad
  • Port Rate Limiting and Broadcast Storm Limiting
  • Port Mirroring for Troubleshooting
  • SNMP (Simple Network Management Protocol)
  • SNTP (Simple Network Time Protocol)
  • Remote Monitoring (RMON)
  • DHCP Client, Server, and Relay
  • Port Trunking for optimal bandwidth utilization
  • Port Manager for Speed/Duplex/auto negotiation
  • Event Monitoring with automatic email warnings

The features of Cyber Security in RhinoSwitch® RSM-1600 Managed Switches are:

  • SSH/SSL Encryption
  • Radius-based Access Management and Authentication
  • TACACS+ based User Management
  • Multiple levels of Passwords/User Access
  • Port Security with MAC based Access Control
  • 802.1X Port Based Network Access Control
  • SNMPv3 Encrypted Authentication and Access Security
  • VLAN (802.1Q) for Security and Traffic Segregation

Product Specifications

Table 1: Specifications for RhinoSwitch® RSM-1600 Managed Switches

RSM-1600
General
  • Operation: Store and forward wire speed switching, non-blocking
  • Modes: Full or half duplex operation with flow control supported on all ports
  • Switching bandwidth: 6.4 Gbps
  • Latency (100Mb typical): 5 µs plus frame time
  • Packet Buffer: 2Mb (256KB)
  • Ethernet isolation: 1500 Vrms 1 minute
  • Console port: RJ45
  • 8K MAC addresses
RJ45 Copper Ports
  • RJ45 ports: Up to 16 ports fully IEEE 802.3 compliant (Optional: up to 8 PoE ports (802.3af) or PoE+ ports (802.3at)
  • RJ45 speed and duplex: Configurable or 10/100/1000 auto-detecting for speed & duplex (full or half)
  • RJ45 MDI/MDIX: Auto-MDI/MDIX-Crossover automatically supports either straight or crossed cables
  • RJ45 polarity: Auto-polarity for automatic correction of crossed TXD and RXD pairs
100Mb Fiber Ports
  • Multi-mode and Single-mode. Up to 16 fiber ports total, each FDX or HDX. FDX mode is default.
Gigabit 1000Base-X SFP Ports
  • Optional: FP Slots for 2 Gigabit fiber optic transceivers or 1000Mb copper transceivers for distances up to 40km
  • Optional: 2 Gigabit fixed fiber ports may be selected rather than Gigabit SFP slots
Power and Alarm Output
  • AC: Input: 100-125VAC at 60 Hz, 215-240VAC at 50 Hz
  • DC Power input: Dual redundant power inputs for single power supplies
  • DC: Low Input voltage range (24/28V, 48/55V) DC: 18-75VDC
  • DC: High Input voltage range (110, 125, 150, 250VDC): 90-300VDC
  • Power consumption: 30 watts max
  • Industrial surge and spike protection: 15 kW peak, 5 kW (10 times for 10 µs)
  • Alarm Output (RJ45): 2 alarms; form C contact relay and normally closed
Environmental
  • Operating temperature for all models: -40°C to +85°C
  • Storage temperature for all models: -45°C to +90°C
  • Humidity: 5 to 95% RH (non-condensing)
  • Altitude: 19,000 ft. (6,000m)
  • MTBF: > 219,000 hours
  • Optional Conformal Coating available on request
Standards and Compliance
  • Safety: UL/CSA/EN/IEC 60950-1, 2nd Edition CB report
  • Emissions: EN/ETSI 300-386; FCC Part 15
  • EN55032,24; AN/NZ CISPR22, VCCI, EN61000-6-4 Class A
  • CFR 47-FCC part 15, ICES 003, Class A
  • Hazardous Locations: UL/cUL Class 1 Div 2; ATEX Zone 2
  • IEC 61850 EMC & Environmental Operating Conditions Class C for Power Utility substations (KEMA)
  • IEEE 1613 Class 2 Environmental Standard for Power Utility Substations
  • NEMA TS-2 & TEES for DC- and PoE-powered traffic control equipment
  • Military: MIL-STD-461G
  • Military: MIL-STD-810G
  • Marine: DNV
  • Mining: Directive 2006/21/EC
  • Telecom: NEBS, GR63 & GR1089, L3; ETSI 300 386, EN 301 489
  • Railways: EN50155 and EN50121-4 Compliant
  • Vibration: IEC 60068-2-6
  • Shock: IEC 60068-2-27
  • Freefall: IEC 60068-2-32
  • RoHS (Pb free) and WEEE compliant
  • Immunity: EN61000-4-2 (ESD) Level 4; EN61000-4-3 (RFI) Level 4 EN61000-4-4 (EFT) Level 4;
    • EN61000-4-5 (Surge) Level 4
    • EN61000-4-6 (C. Susceptibility) Level 3
    • EN61000-4-8 (PF Magnetic Field) Level 4
    • EN61000-4-10 (Damp Osc.) Level 4
    • EN61000-4-11 (VDI) Class 3
    • EN61000-4-12 (Osc. Wave Im.) Level 3
    • EN61000-4-16 (I.C. CMD) Level 3
    • EN61000-4-29 VDSI on DC Input
    • EN61000-6-2; EN61000-6-5 DT&T-NL, Immunity PS&SS
Mechanical
  • Chassis: 1RU; may be rack-mounted or DIN rail-mounted
  • Material: Metal with powder coating
  • Dimensions:
    • Width: 11.3 in (28.7 cm)
    • Depth: 8 in (20.3 cm)
    • Height: 1.73 in (4.4 cm)
    • Weight: 3 lb. (1.4 kg)
IP Rating

IP32

Warranty

5 years

Made in

USA
