RhinoSwitch® RSM-1400 Managed Switches

RhinoSwitch® RSM-1400 Managed Switches

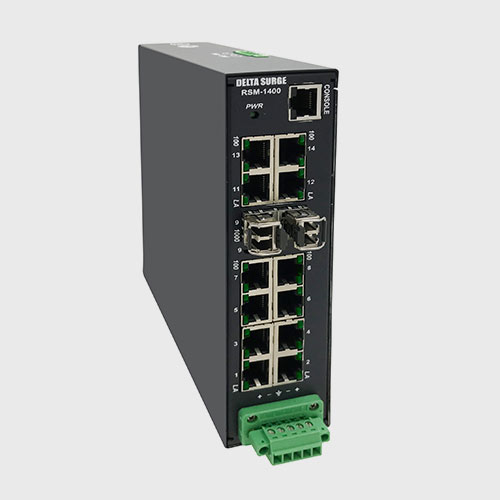

The RhinoSwitch® RSM-1400 Managed Switches are industrial hardened products. They offer Twelve Fast Ethernet RJ45 ports of which four can be PoE ports and 2 Gigabit optical fiber or copper ports

Datasheet (PDF) Contact now
Category:

Related products

  • Models that have 12 10/100 RJ45 Ports with PoE/PoE+ options and two Gigabit SFP ports or fixed Gigabit fiber in a compact package
  • Robust, user-friendly Management Software
  • Ability to work in extreme operating environment with temperatures ranging from -40° to +85°C
  • Robust access via HTTPS/SSH/SSL and authentication using multi-level passwords, TACACS+/RADIUS
  • High and low AC/DC power options
  • DIN-Rail and panel mounting options

The features of the Management Software in RhinoSwitch® RSM-1400 Managed Switches is:

  • Robust GUI and CLI-based Management Software
  • RSTP and MSTP for rapid recovery
  • VLAN (802.1Q) with Double Tagging and GVRP
  • IGMP Snooping and GMRP multicast filtering
  • Quality of Service (802.1p) and TOS/DiffServ
  • LLDP for automated topology discovery
  • LACP 802.3ad
  • Port Rate Limiting and Broadcast Storm Limiting
  • Port Mirroring for Troubleshooting
  • SNMP (Simple Network Management Protocol)
  • SNTP (Simple Network Time Protocol)
  • Remote Monitoring (RMON)
  • DHCP Client, Server, and Relay
  • Port Trunking for optimal bandwidth utilization
  • Port Manager for Speed/Duplex/auto negotiation
  • Event Monitoring with automatic email warnings

The features of Cyber Security in RhinoSwitch® RSM-1400 Managed Switches is:

  • SSH/SSL Encryption
  • Radius-based Access Management and Authentication
  • TACACS+ based User Management
  • Multiple levels of Passwords/User Access
  • Port Security with MAC based Access Control
  • 802.1X Port Based Network Access

Product Specifications

RSM-1400
General
  • Operation: Store and forward wire speed switching, non-blocking
  • Modes: Full or half duplex operation with flow control supported on all ports
  • Switching bandwidth: 6.4Gbps
  • Latency (100M typical): 7 µs plus frame time
  • Packet Buffer: 2Mb
  • Ethernet isolation: 1500 Vrms 1 minute
  • Console port: RJ45
  • 8K MAC addresses
RJ45 Copper Ports
  • RJ45 ports: Twelve RJ45 ports that are fully IEEE 802.3 compliant (Optional: Four RJ45 PoE ports
    (802.3af))
  • RJ45 speed and duplex: Configurable or 10/100 auto-detecting for speed & duplex (full or half)
  • RJ45 MDI/MDIX: Auto-MDI/MDIX-Crossover automatically support either straight or crossed cables
Gigabit 1000Base-X SFP Ports
  • Two SFP ports can be configured with Gigabit fiber optic or copper transceivers
  • Optional: 1000 Mb fixed fiber ports may be selected rather than Gigabit SFP slots
Power and Alarm Output
  • AC: Input: 100-125vac at 60 Hz, 215-240vac at 50 Hz
  • DC Power input: Dual redundant power inputs for single power supplies
  • DC: Low Input voltage range (12V) DC 9-15VDC (24/28V,48/55V) DC: 18-75VDC
  • DC: High Input voltage range (110, 125, 150): 90-170VDC
  • Power consumption: Typical w/ all standard ports linked/active RSM-1400: 15 watts
  • Industrial surge and spike protection: 15 kW peak, 5 kW (10 times for 10 µs)
  • Alarm Output (RJ45): 2 alarms; form C contact relay and normally closed
Environmental
  • Operating temperature for all models: -40°C to +85°C
  • Storage temperature for all models: -45°C to +90°C
  • Humidity: 5 to 95% RH (non-condensing)
  • Altitude: 19,000 ft. (6,000m)
  • MTBF: > 219,000 hours
  • Optional Conformal Coating available on request
Standards and Compliance
  • Safety: UL/CSA/EN/IEC 60950-1, 2nd Edition CB report
  • Emissions: EN/ETSI 300-386; FCC Part 15
  • EN55032,24; AN/NZ CISPR22, VCCI, EN61000-6-4 Class A CFR 47-FCC part 15, ICES 003, Class A
  • Hazardous Locations: UL/cUL Class 1 Div 2; ATEX Zone 2
  • IEC 61850 EMC & Environmental Operating Conditions Class C for Power Utility substations (KEMA/DNV)
  • IEEE 1613 Class 2 Environmental Standard for Power Utility Substations
  • NEMA TS-2 & TEES for DC- and PoE-powered traffic control equipment
  • Military: MIL-STD-810G
  • Marine: DNV
  • Mining: Directive 2006/21/EC
  • Telecom: NEBS, GR63 & GR1089, L3; ETSI 300 386, EN 301 489,
  • Railways: EN50155 and EN50121-4 Compliant
  • Vibration: IEC 60068-2-6
  • Shock: IEC 60068-2-27
  • Freefall: IEC 60068-2-32
  • RoHS (Pb free) and WEEE compliant
  • Immunity:
    • EN55024
    • EN61000-4-2 (ESD) Level 4; EN61000-4-3 (RFI) Level 4 EN61000-4-4 (EFT) Level 4;
    • EN61000-4-5 (Surge) Level 4
    • EN61000-4-6 (C. Susceptibility) Level 3
    • EN61000-4-8 (PF Magnetic Field) Level 4
    • EN61000-4-10 (Damp Osc.) Level 4
    • EN61000-4-11 (VDI) Class 3
    • EN61000-4-12 (Osc. Wave Im.) Level 3
    • EN61000-4-16 (I.C. CMD) Level 3
    • EN61000-4-29 VDSI on DC Input
    • EN61000-6-2; EN61000-6-5 DT&T-NL, Immunity PS&SS
Mechanical
  • Chassis: DIN rail-mounted; panel or rack-mounted
  • Material: Metal with powder coating
  • Dimensions:
    • Width: 7.125 in (18.1 cm)
    • Depth: 5.5 in (14 cm)
    • Height: 1.75 in (4.4 cm)
    • Weight: 1.5 lb. (0.7 kg)
IP Rating

IP30

Warranty

5 years

Made in

USA
